Product Overview
Main purpose
A breathable thermal and acoustic insulation panel that can be directly plastered on to.
Use it on
Internal or external walls and ceilings. The 15mm board is suitable for internal use only with 600mm (or narrower) centres. When 25mm thick Cewood is used externally, a supporting board (e.g. OSB) is required directly behind. If no supporting board is used externally, a thicker Cewood board is required. With 400mm centres externally, a 35mm Cewood board must be used; with 600mm centres externally, a 50mm thick Cewood board must be used.
Overview

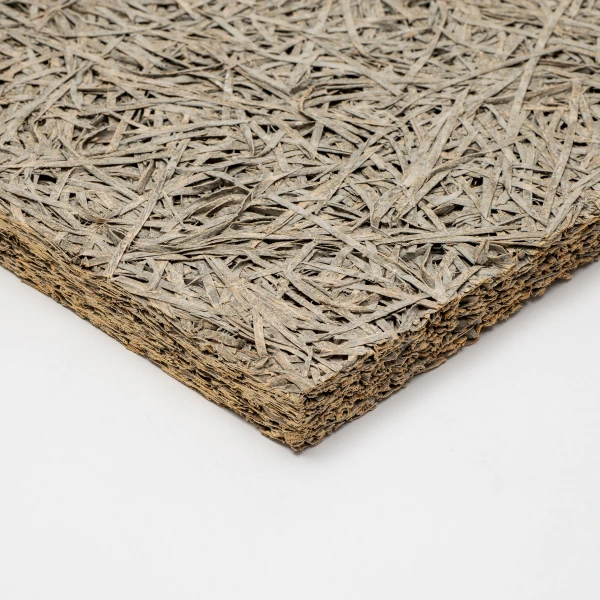

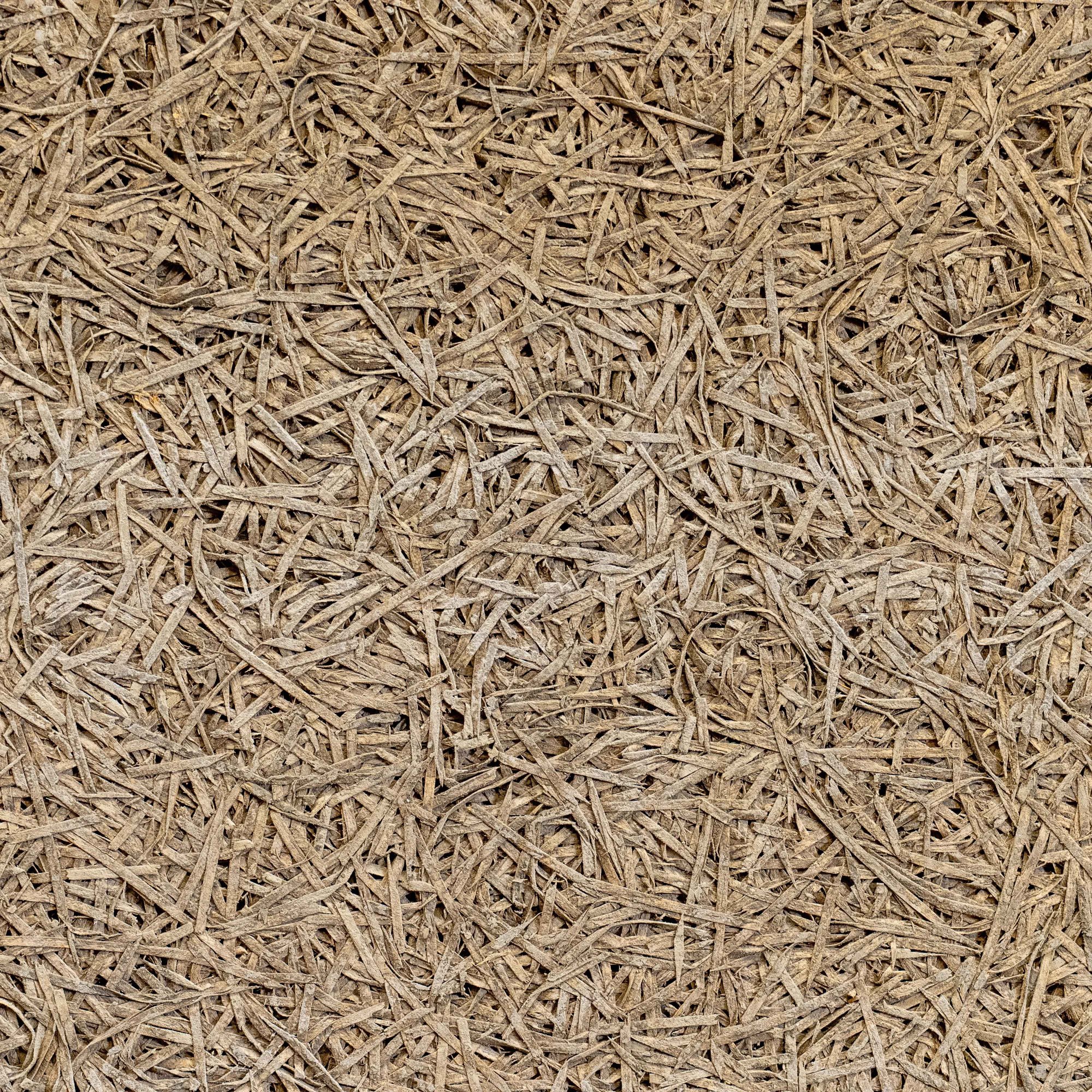

Cewood Wood Wool Construction boards are thermal and acoustic insulation boards made from 3.00mm wide wood wool strands bound together with cement. The wiry ‘bird’s nest’ structure has a huge surface area which provides an excellent key for direct plastering. As a breathable (vapour open) carrier board, it is ideal for plastering with lime-based plasters and provides an alternative to gypsum plasterboard for internal finishes on any type of wall. Cewood wood wool insulation boards are B-S1,d0 Euro fire class rated.
Where to use it

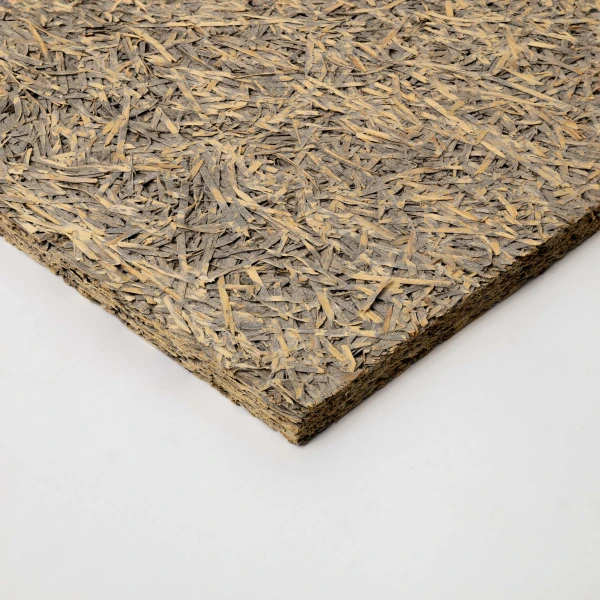

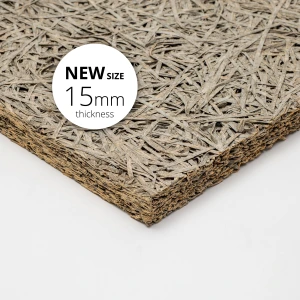

Cewood 25mm wood wool boards can be used internally or externally on any wall or ceiling in new or existing buildings. The 15mm board is suitable for internal walls and ceilings with 600mm centres only.
When used externally, a 25mm thick Cewood wood wool panel must always have a supporting board such as OSB directly underneath; without a supporting board, a thicker Cewood panel will be needed. Used externally with 400mm centres, a 35mm thick Cewood board is required. At 600mm centres, used externally, a 50mm thick Cewood board will be required.
What it does
Thermal and acoustic wood wool boards are breathable insulated construction panels that provide a robust and stable internal lining which can be plastered over with any lime plaster. When left un-plastered, the wood wool insulation can be painted with a breathable natural paint and used as acoustic insulation. The large surface area and irregular "birds nest" texture of the wood strands provide excellent acoustic dampening of airborne noise within rooms and reduces sound transmission within the building.
Why we love it
Cewood boards are breathable and offer great flexibility of uses. They provide the ideal surface for plastering allowing for a smooth plaster finish with additional thermal and acoustic insulation. They allow breathable lime plasters to be used for final finishing instead of gypsum plasterboard in new build and retrofit projects. The breathability, compatibility with lime plaster and robustness makes Cewood wood wool boards an excellent choice for historic buildings with solid masonry construction.

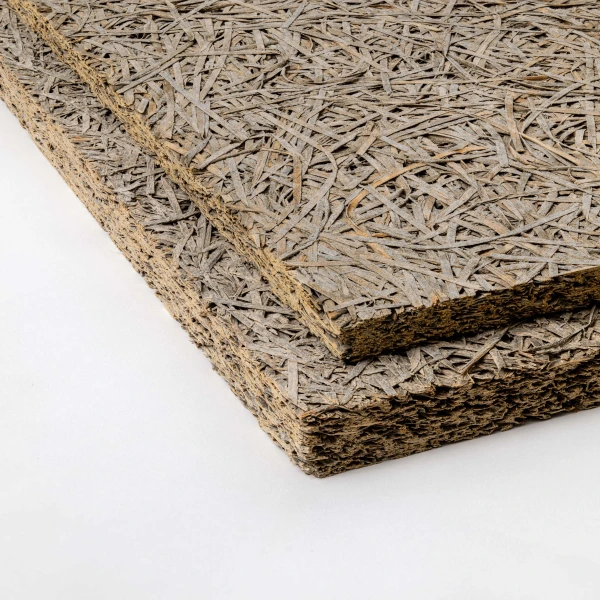

At 15mm or 25mm thick and made from strongly bonded timber strands, walls finished internally with Cewood wood wool boards can have lightweight pictures, mirrors and shelving hung on them without the use of special plasterboard fixings. Be sure to use wood screws that are short enough to prevent puncturing the airtightness layer behind.
Features
- Provides thermal and acoustic insulation
- Moisture vapour diffusion open
- Can be used internally or externally
- Strong and stable carrier board for plaster or render
- Ideal for newbuild and refurbishments / retrofit
Benefits
- Fibrous "birds nest" structure provides an excellent key for lime plaster or render
- In historic buildings or new build construction allows moisture vapour to diffuse through the building envelope in both directions.
- Highly stable; will not shrink or compress over time so is ideal for older buildings with changing/variable humidity levels.
- Improves U-value and thermal mass of the building element, which reduces heat loss in winter and reduces overheating in summer
- The fibrous structure and density provides better acoustic noise reduction, improved acoustics and higher comfort levels for occupants.
Questions
There are currently no questions and answers published for this product
Technical Details
Key Technical Data
Installation Guide

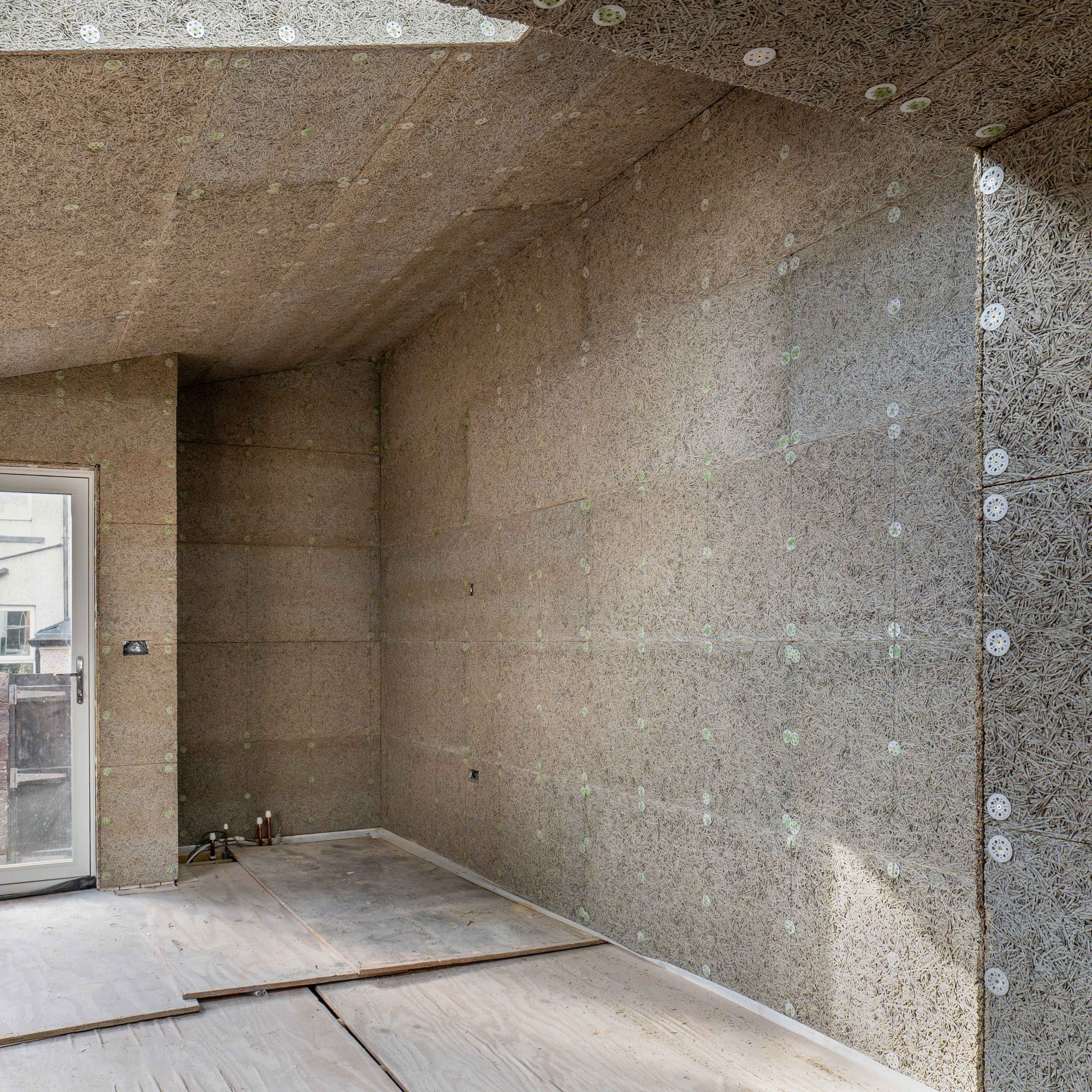

Cewood Wood Wool boards can be directly fixed to timber studs, rafters or battened walls using galvanised 45mm x 4.5mm wood screws or with galvanised nails with washer (diameter ≥ 20mm). Twelve fixings per board are required for the 2400 x 600mm boards and 6 fixings for the 1200mm x 600mm board.
The boards should be installed perpendicular to timber studs/rafters parallel to horizontal battens. The smaller boards should be staggered and installed in a brick style pattern on large areas.
Once fixed, Cewood Wood Wool boards can be directly plastered onto. No primer is required.
