Period Townhouse Retrofit, Galway

Nestled in the heart of Galway city, this protected structure, dating back to the 1840s, has undergone a conversion from its former role as a solicitor's office to a contemporary, urban family home. As part of the renovation, breathable natural insulation, along with Pro Clima airtightness material, were used to align with modern energy standards. Notably, Diasen insulating plaster now envelops the internal face of stone walls, while Calsitherm calcium silicate insulation boards were also used in some areas. This complementary blend of historic preservation and modern functionality epitomises the meticulous approach undertaken in the renovation.

Period Townhouse Retrofit, Galway

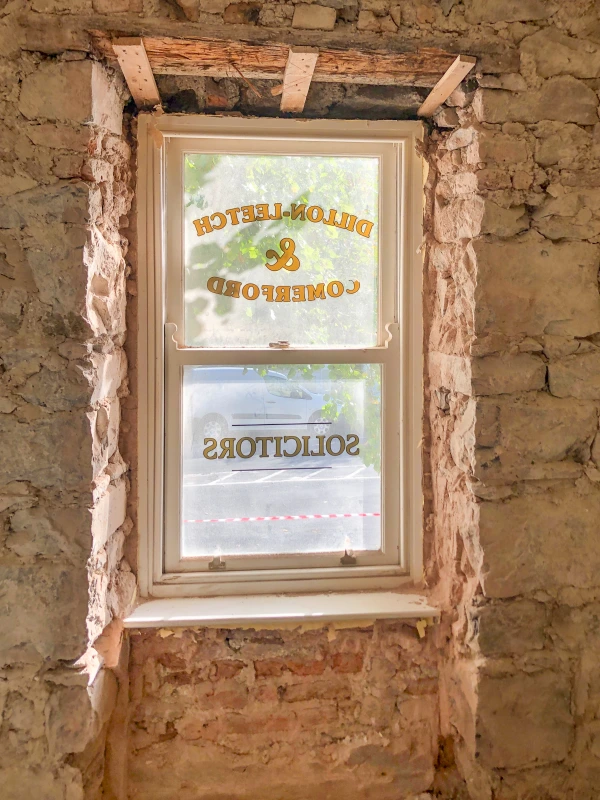

Exposed stone wall at window opening with original window glass from previous occupancy

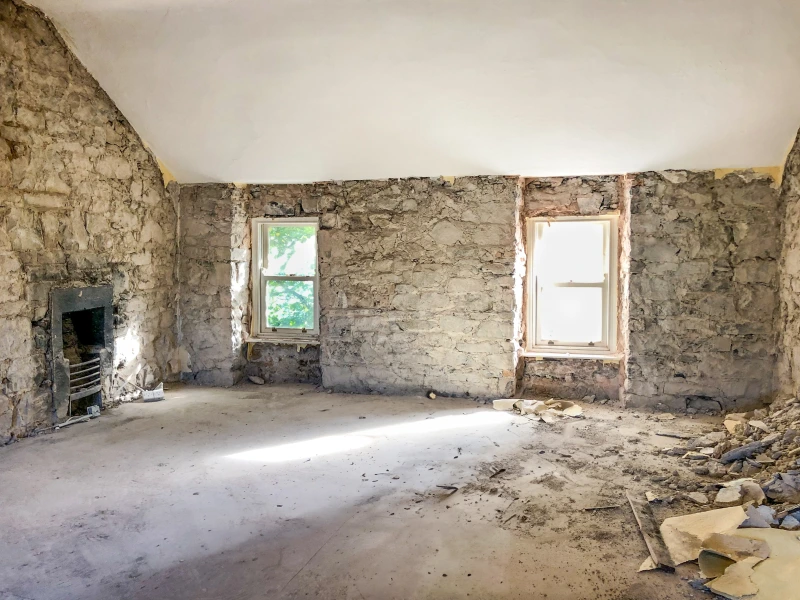

Exposed stone wall showing two windows with original window glass from previous occupancy

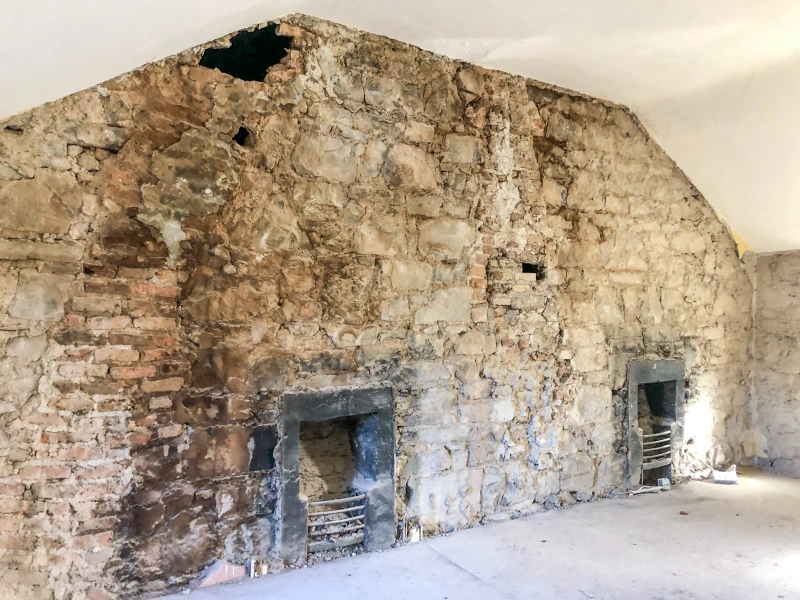

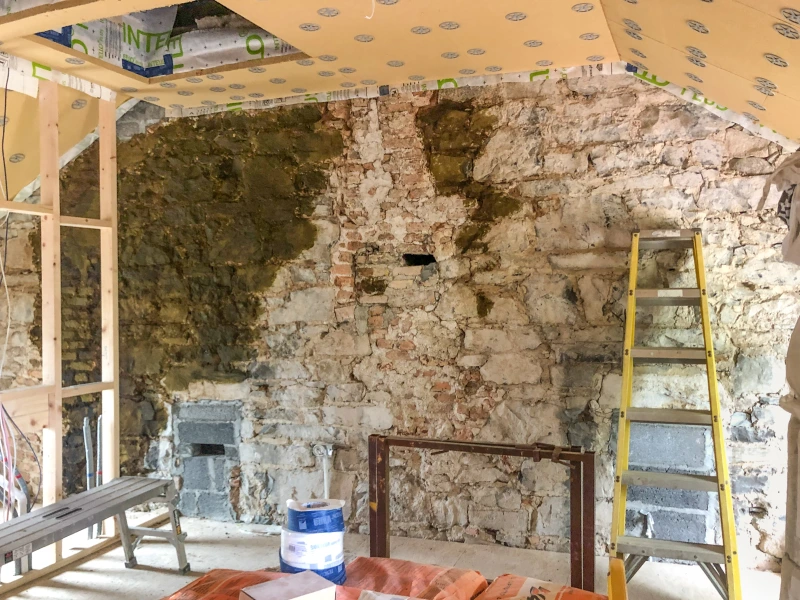

Exposed stone wall showing old fireplaces

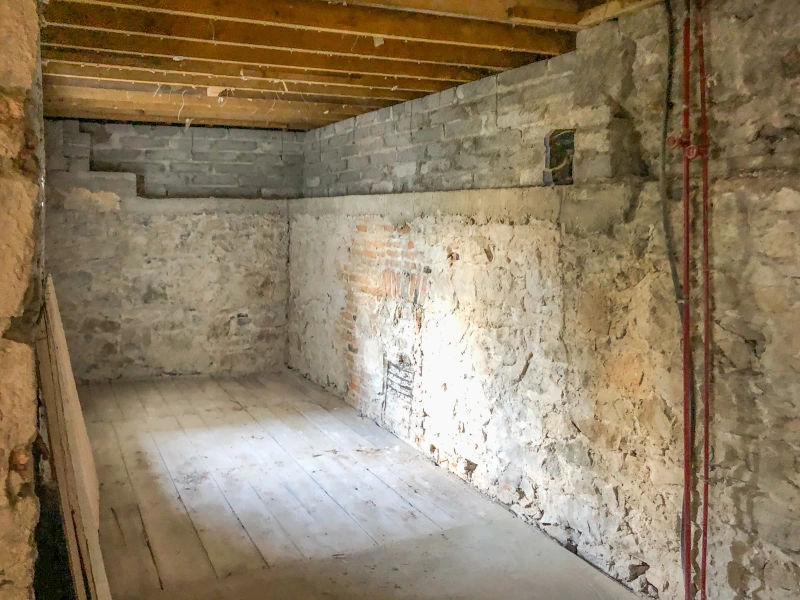

Long room with exposed stone wall and floorboards intact

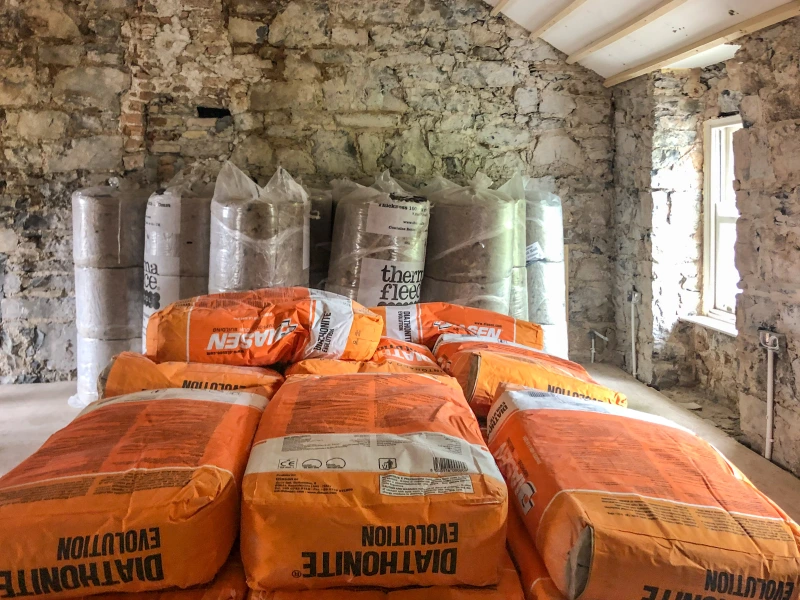

Bagsof Diathonite Evolution, with Thermafleece Cosywool insulation in the background.

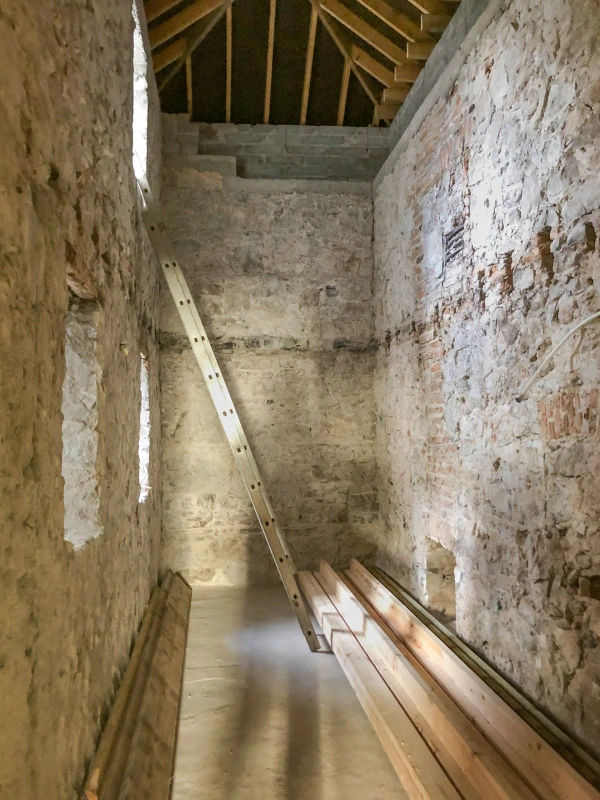

Long room with exposed stone wall and floorboards intact, newly replaced roof.

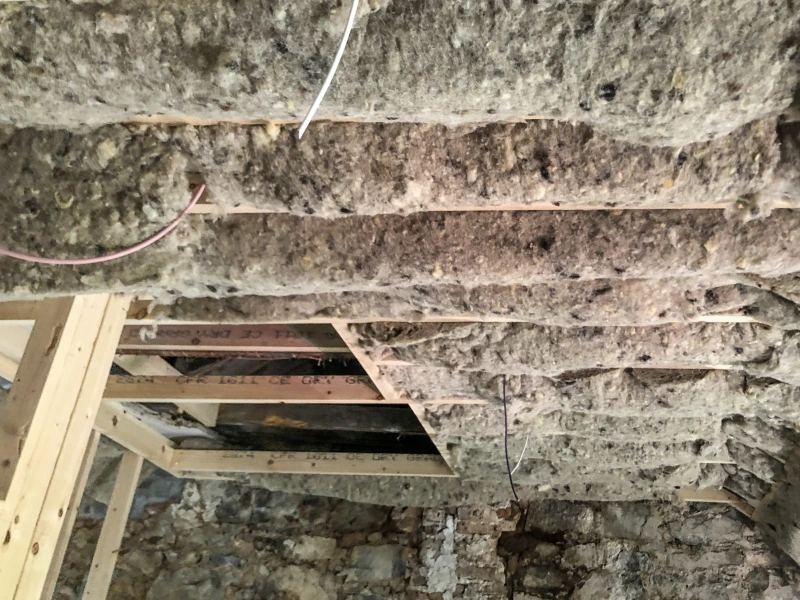

Thermafleece Cosywool insulation used between roof rafters

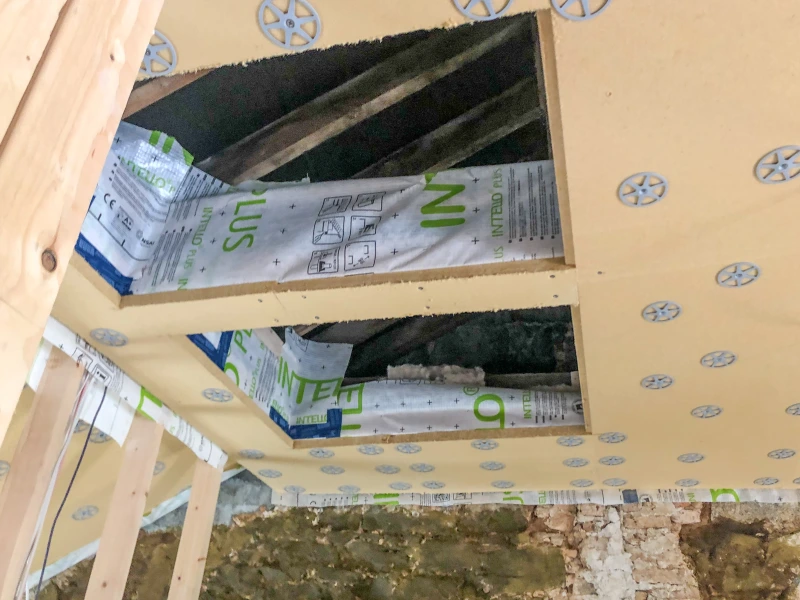

Woodfibre boards fitted to ceiling rafters around attic opening
Woodfibre boards fitted to ceiling rafters around attic opening with Diathonite Evolution partly applied to stone wall.

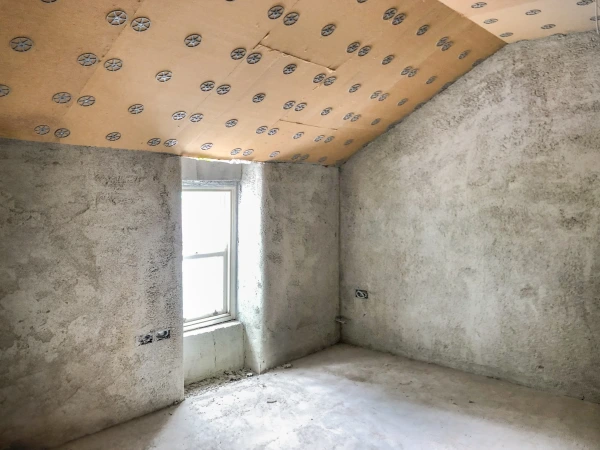

Woodfibre boards fitted to ceiling rafters with Diathonite Evolution fully applied to and cured on walls.

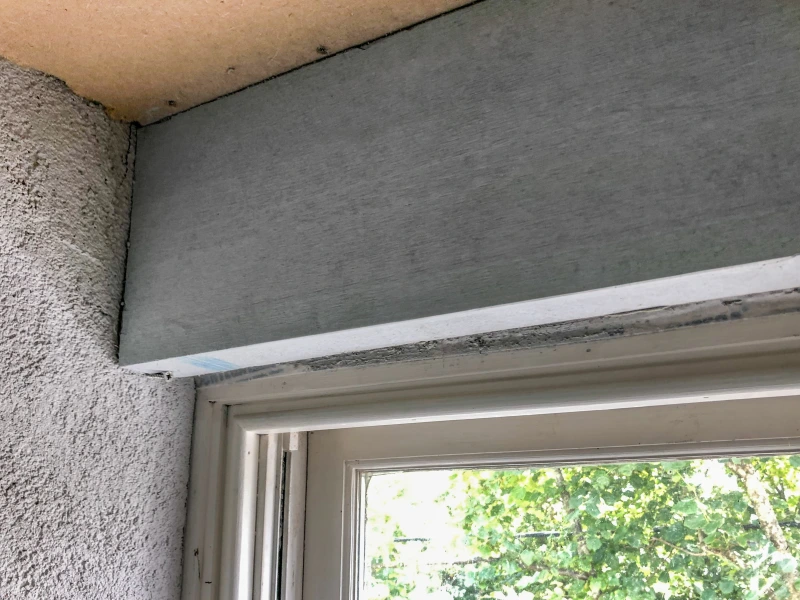

Calsitherm Climate Boards fitted over a window head

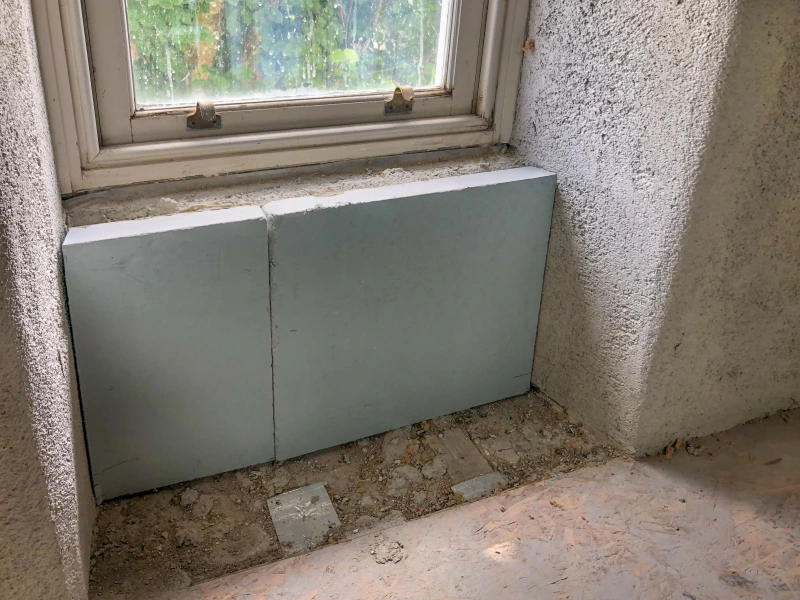

Calsitherm Climate Boards fitted below a window

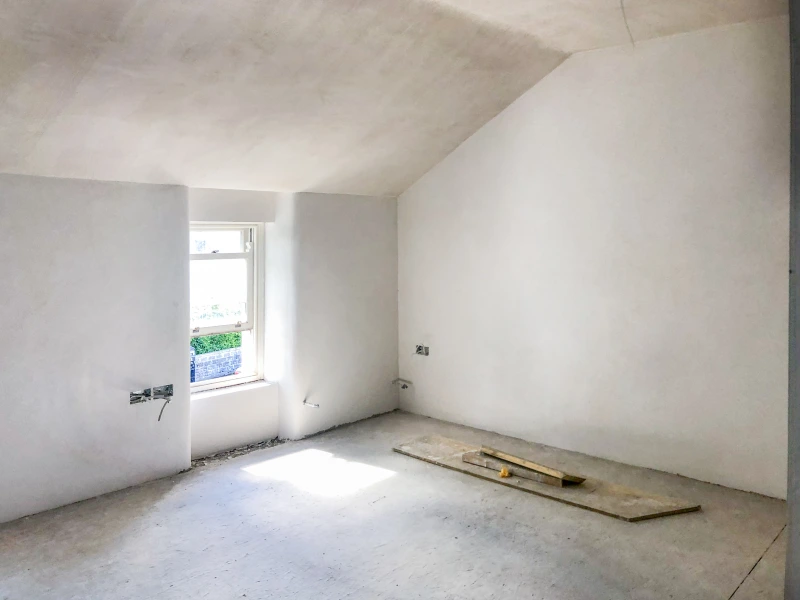

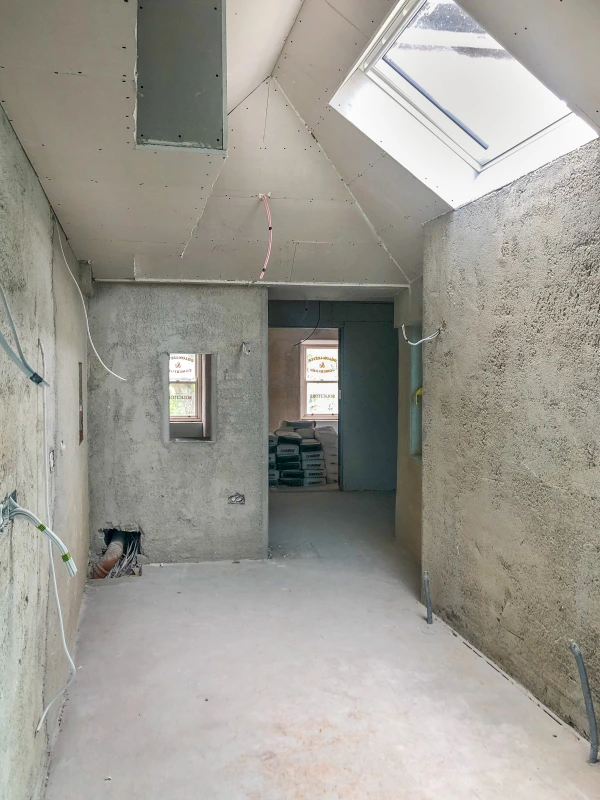

Room with cured Diathonite Evolution on walls and slabs fitted to ceiling

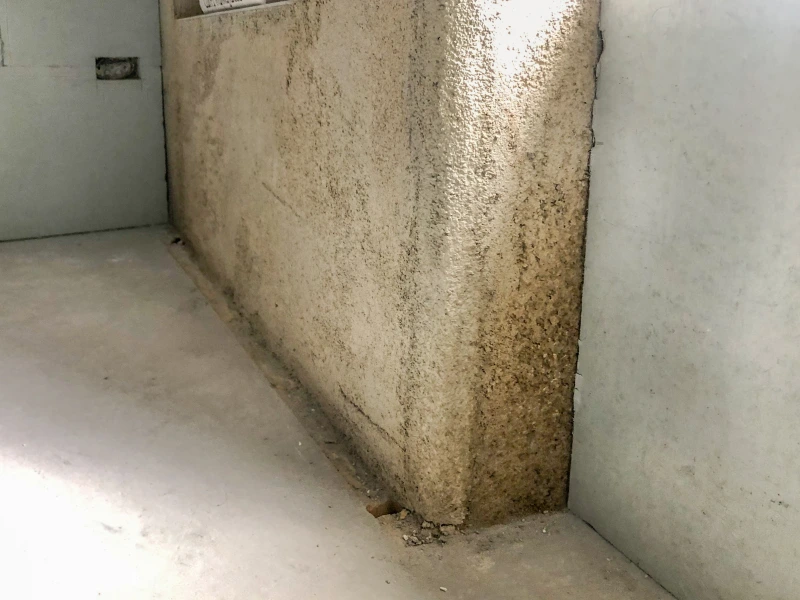

Diathonite Evolution at the base of an internal wall during the drying stage

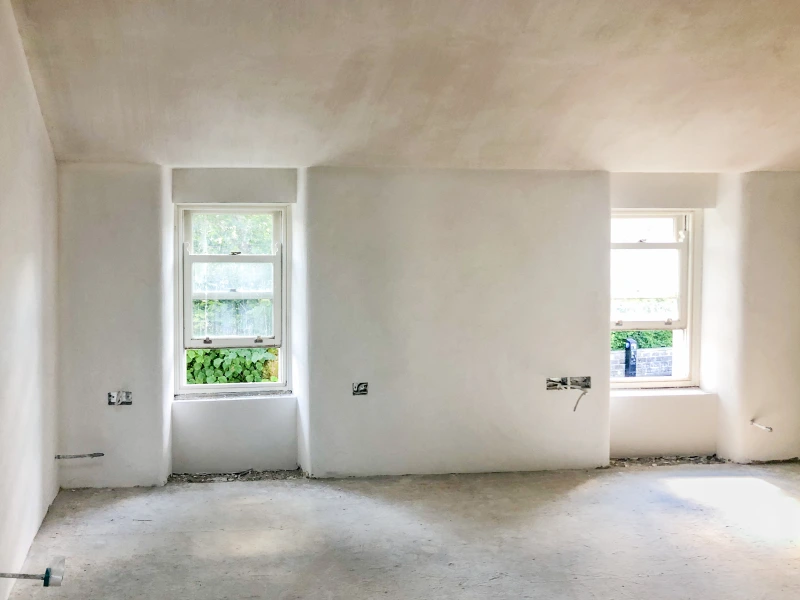

Diathonite Evolution on internal walls, finished with Argatherm finishing plaster.
Diathonite Evolution on internal walls and around a window, finished with Argatherm finishing plaster.

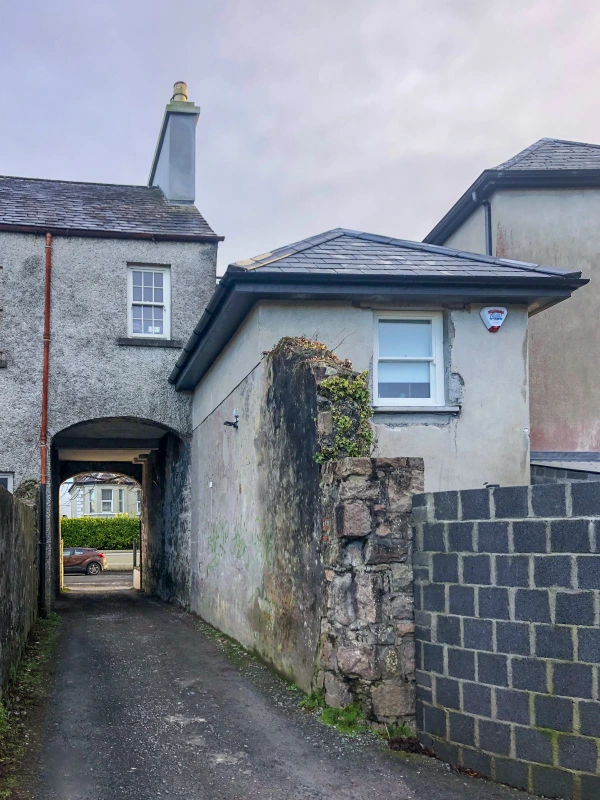

The back of a period townhouse in Galway

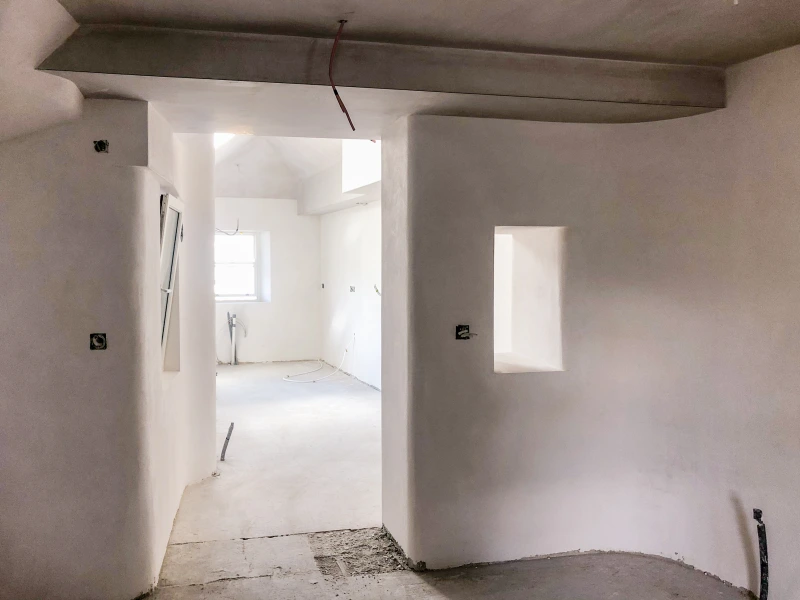

Two windows with natural curves, finished with Argatherm finishing plaster.

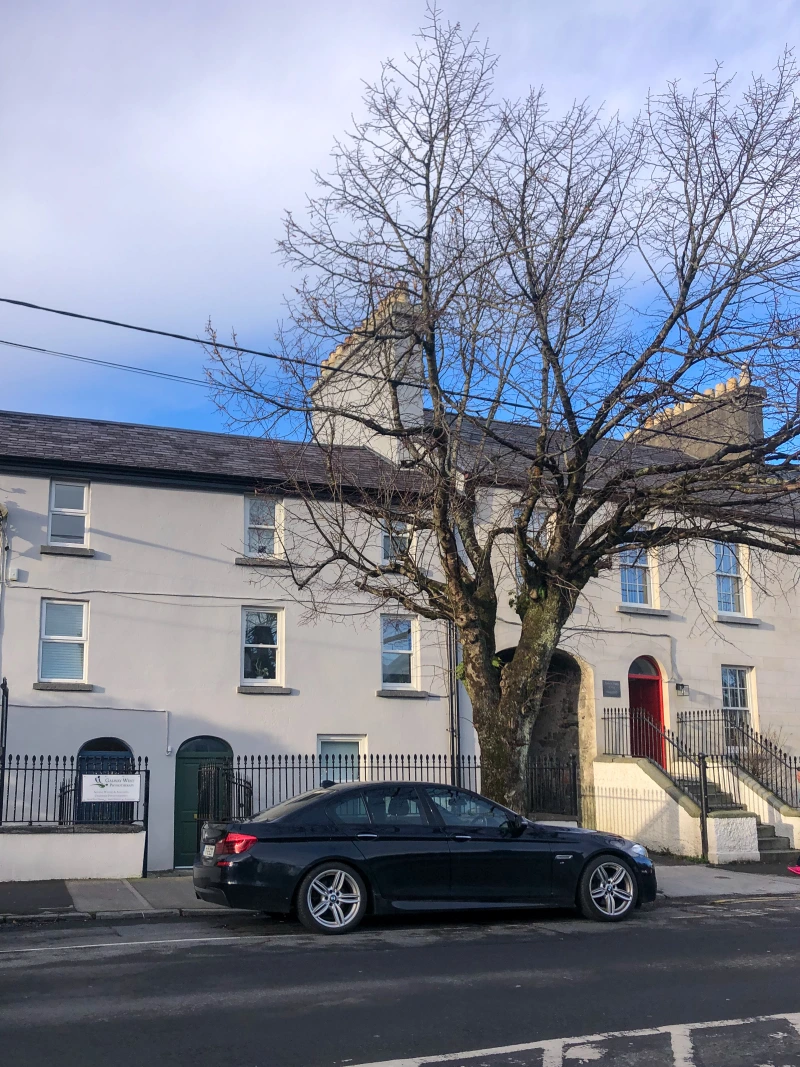

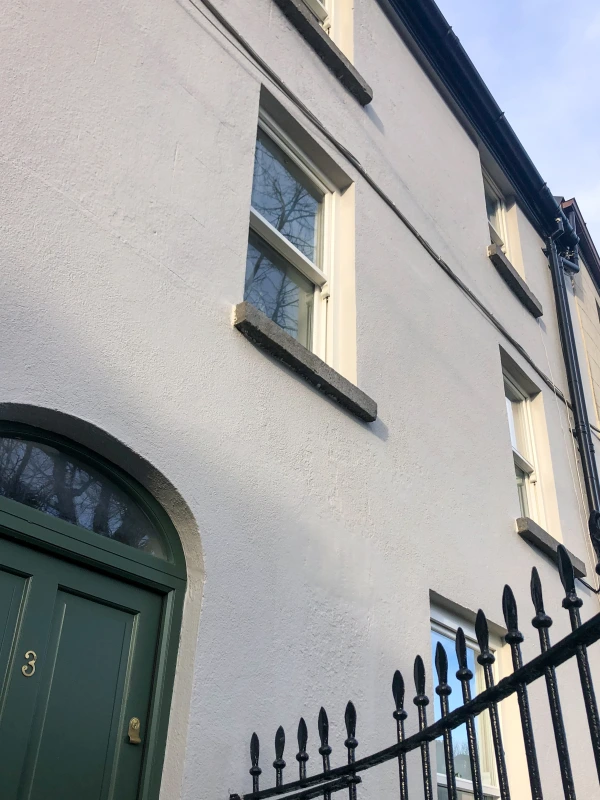

The front street view of a period townhouse in Galway
The outside wall and cast iron gates of a period townhouse in Galway

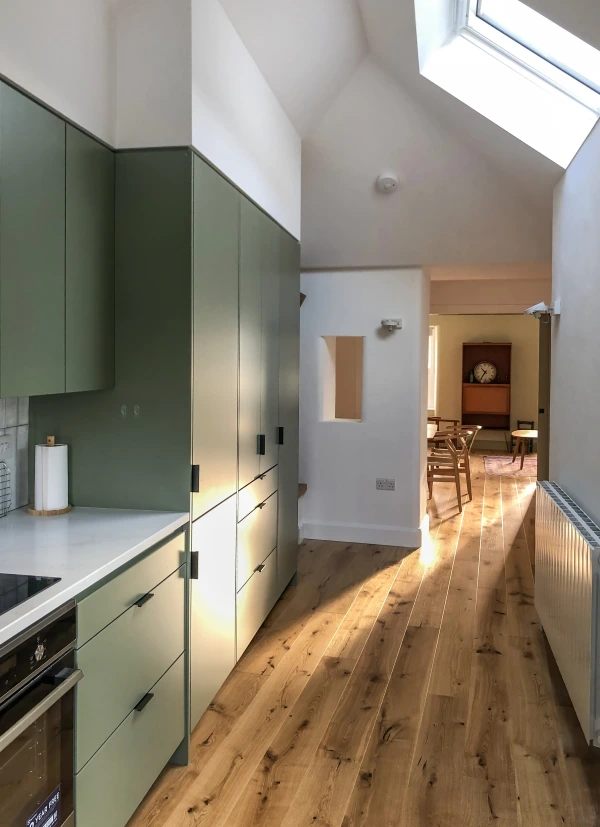

Fully furnished kitchen in townhouse retrofit in Galway

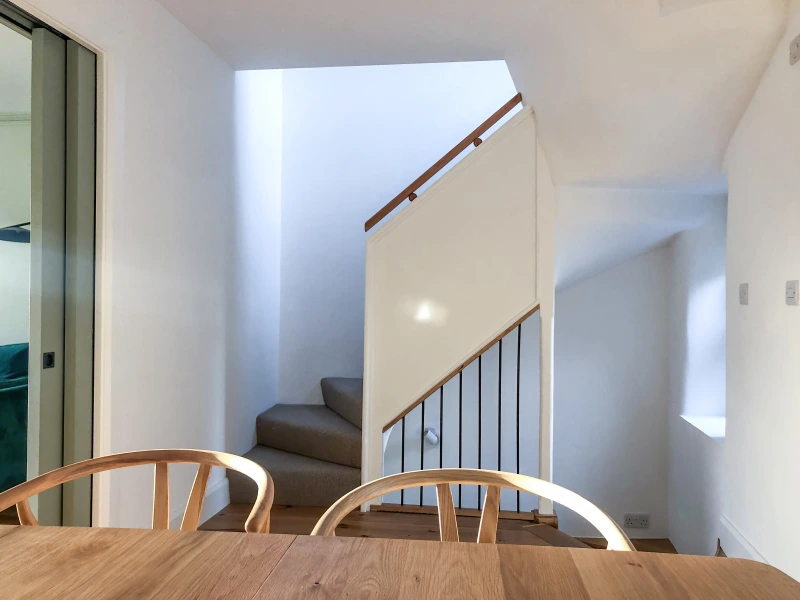

Staircase in kitchen in townhouse retrofit in Galway

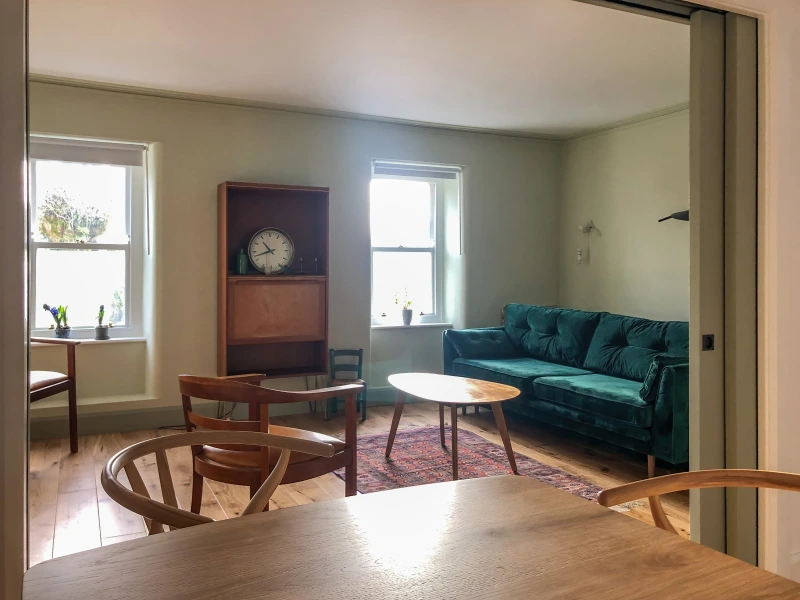

Fully furnished living room in townhouse retrofit in Galway

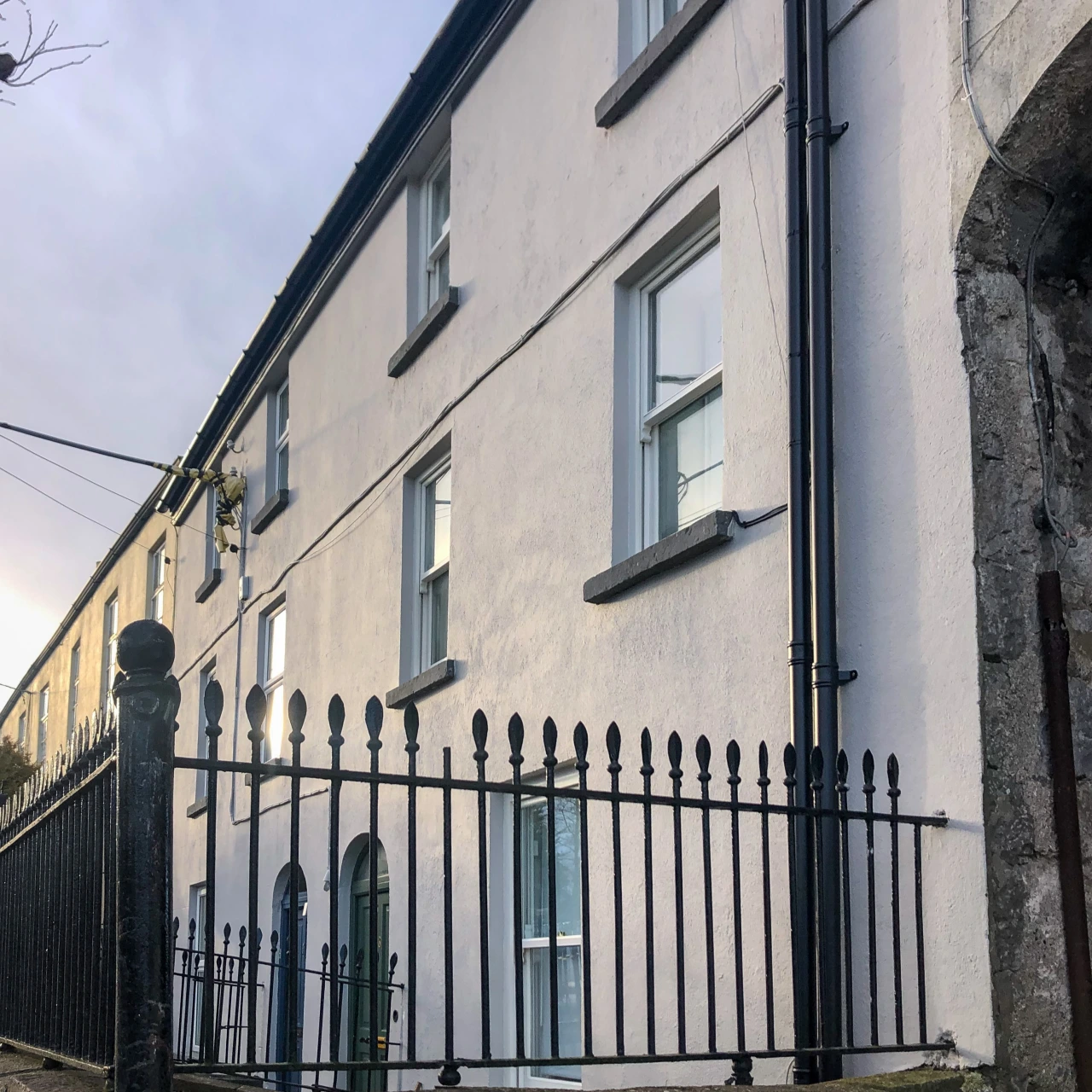

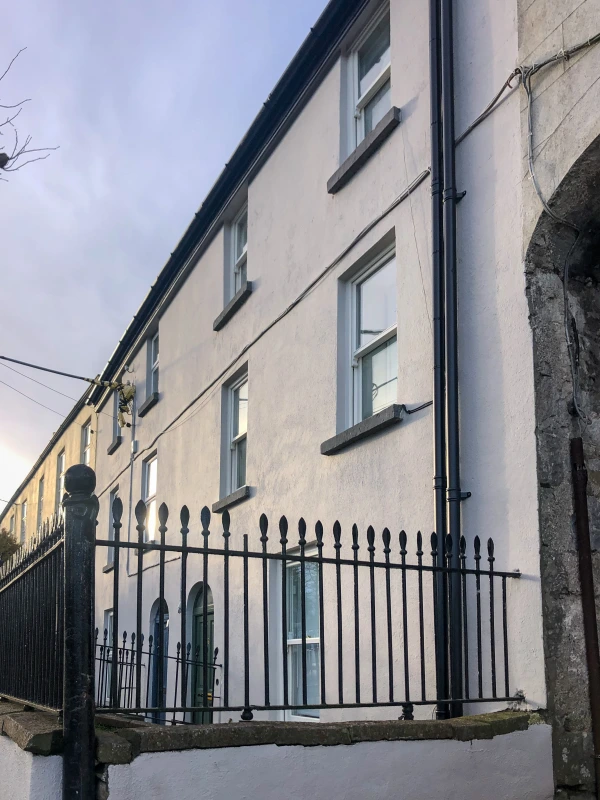

Street view of a row of period townhouses in Galway
Architect
Small Crane Architects
Contractor
Jim Bergin Construction
Plasterers
Michael Mclaughlin and Robert Morley
U Value (Main roof - Flat)
0.11 W/m²K
U Value (Main roof - Roof slope)
0.19 W/m²K
U Value (Rear roof)
0.23 W/m²K
U Value (Existing walls with Diathonite thermal plaster)
0.66 W/m²K
