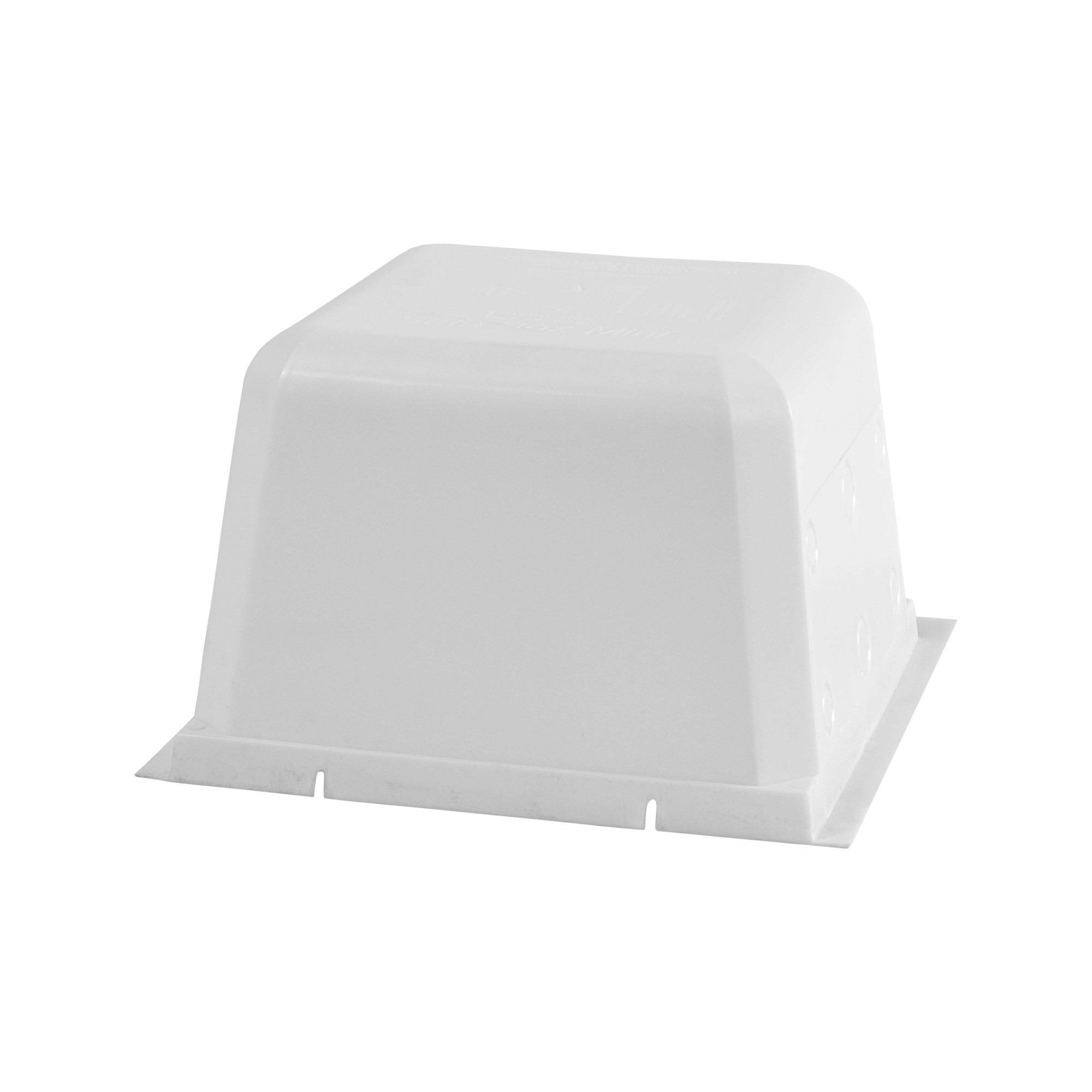

Mini Downlight Protector
Mini Downlight Protector

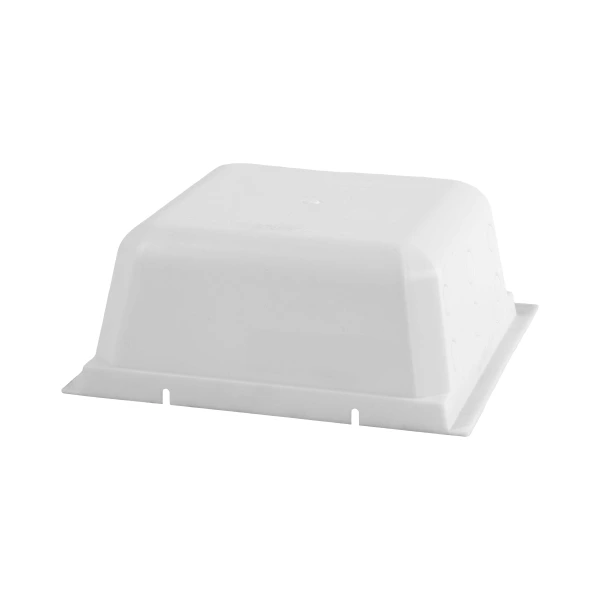

Mini 90 Downlight Protector
Mini 90 Downlight Protector

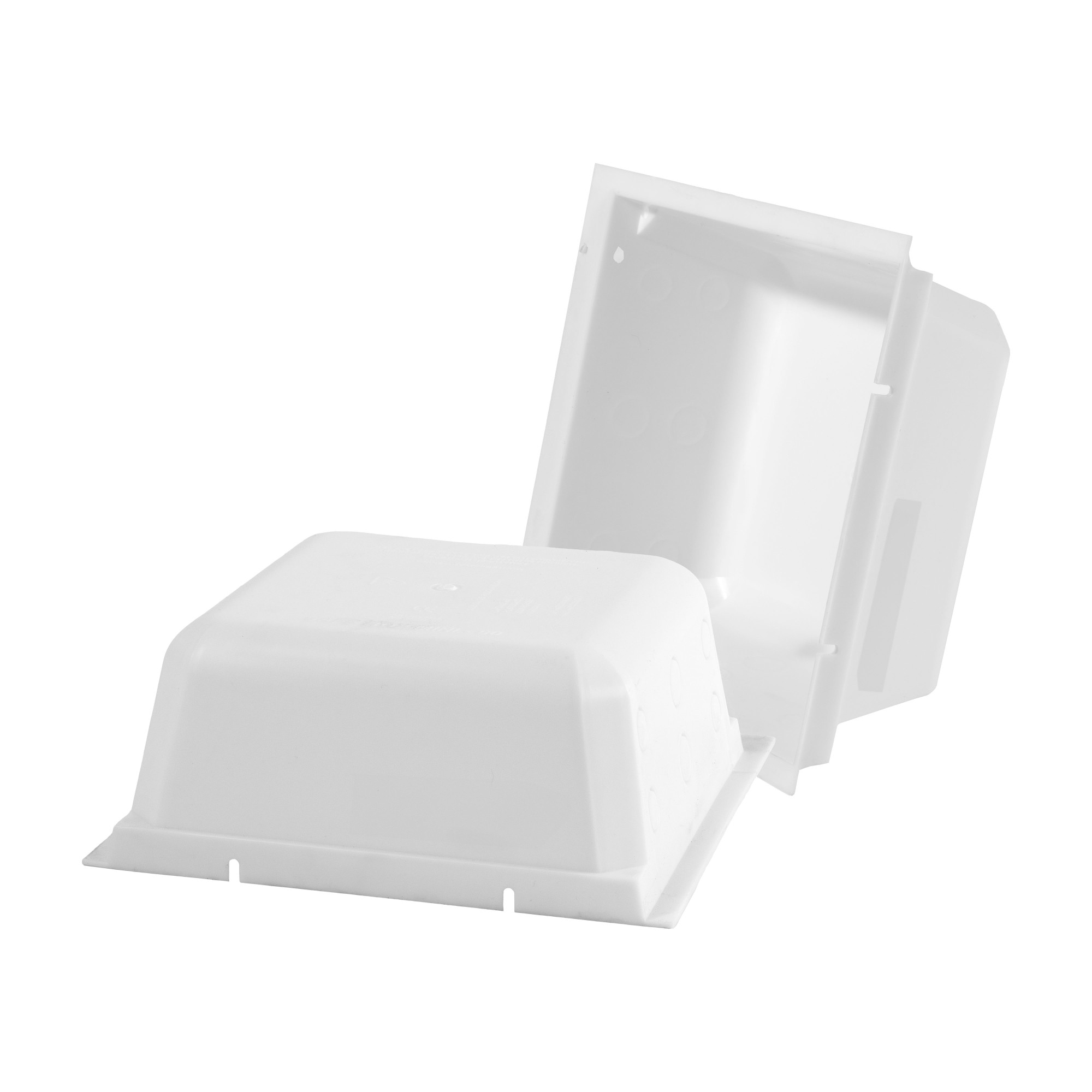

Mini 90 Downlight Protector Inside and Outside View
Mini 90 Downlight Protector Inside and Outside View

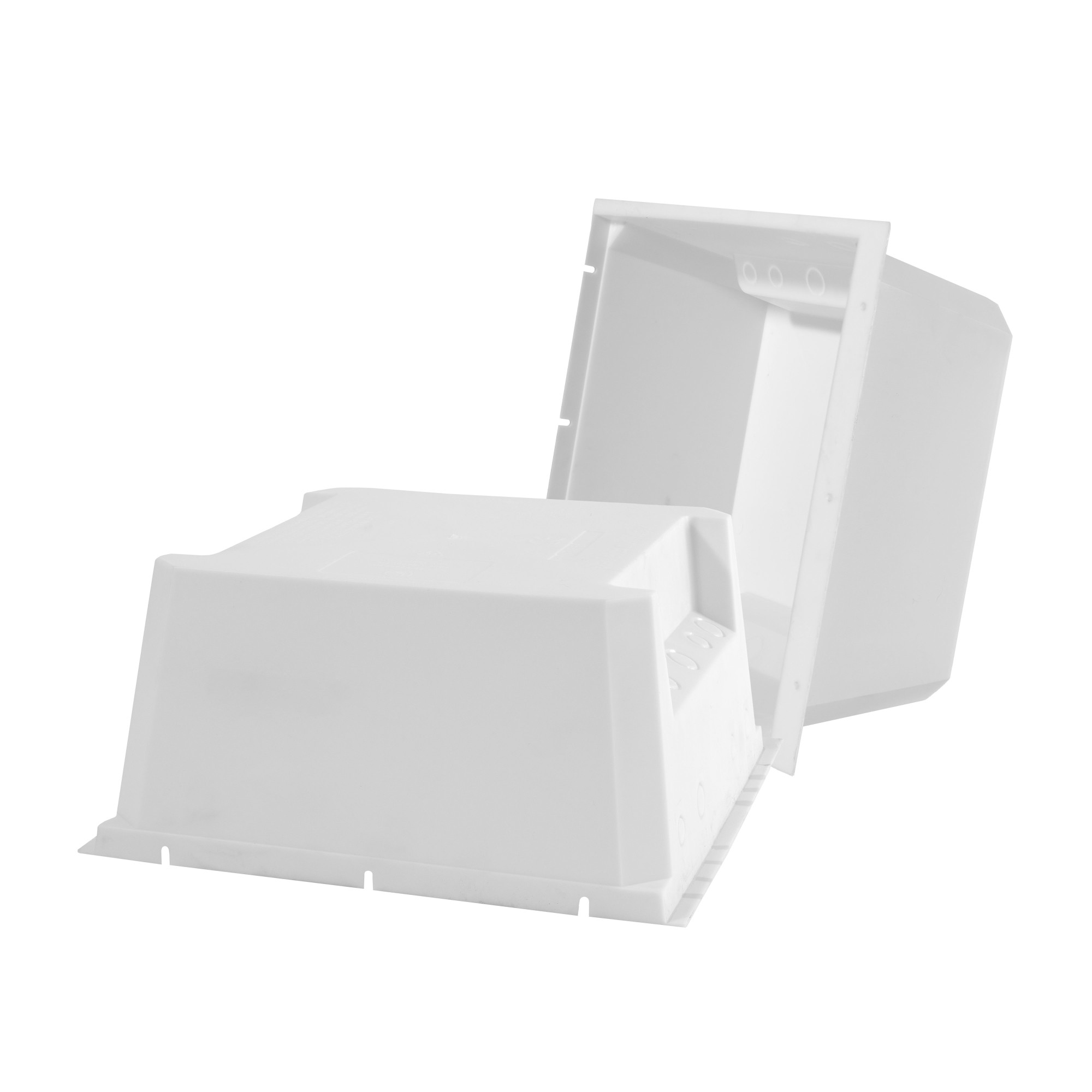

Maxi Downlight Protector Inside and Outside View
Maxi Downlight Protector Inside and Outside View

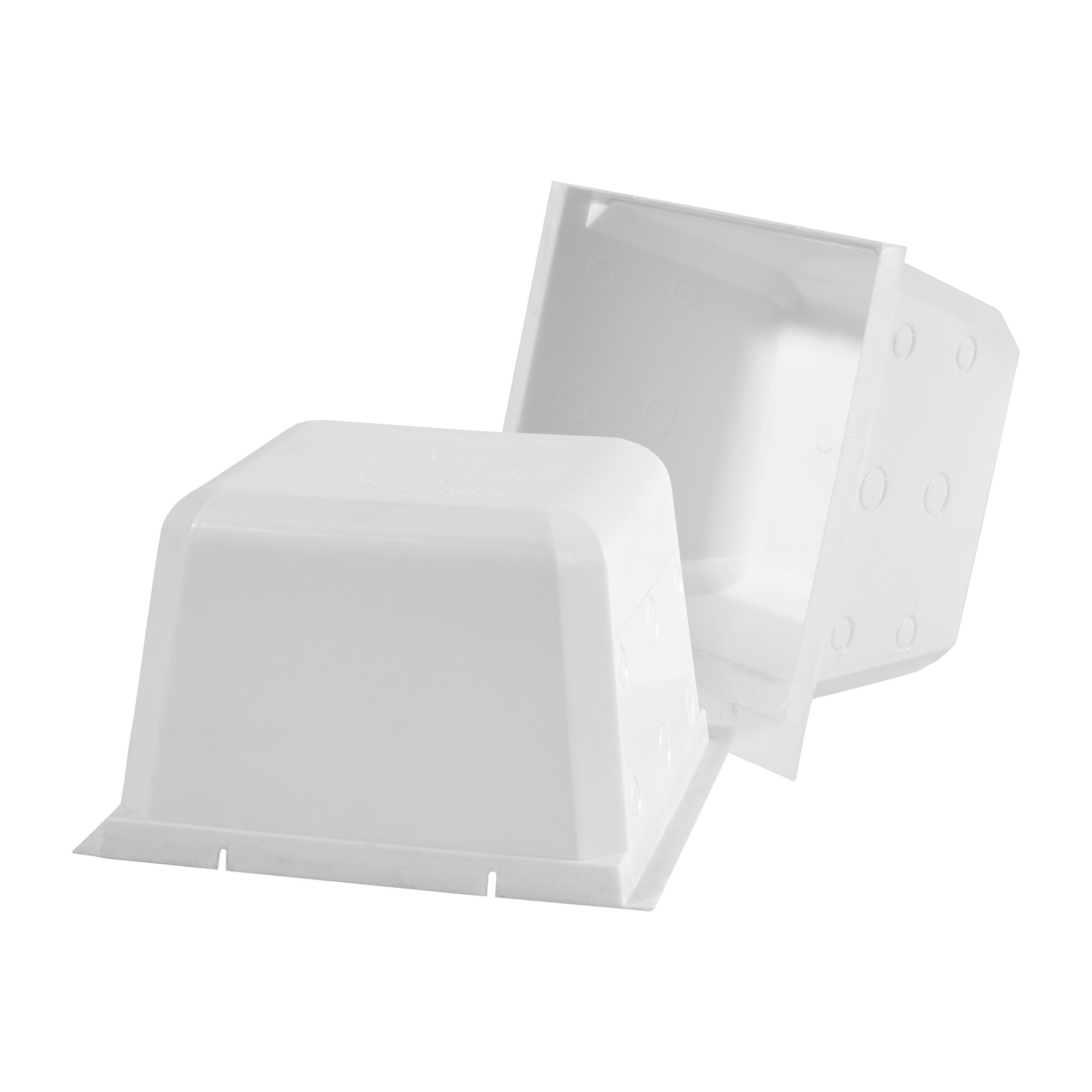

Mini Downlight Protector Inside and Outside View
Mini Downlight Protector Inside and Outside View

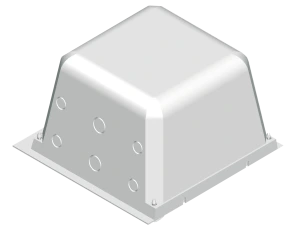

An image of a product
Optime
Optime

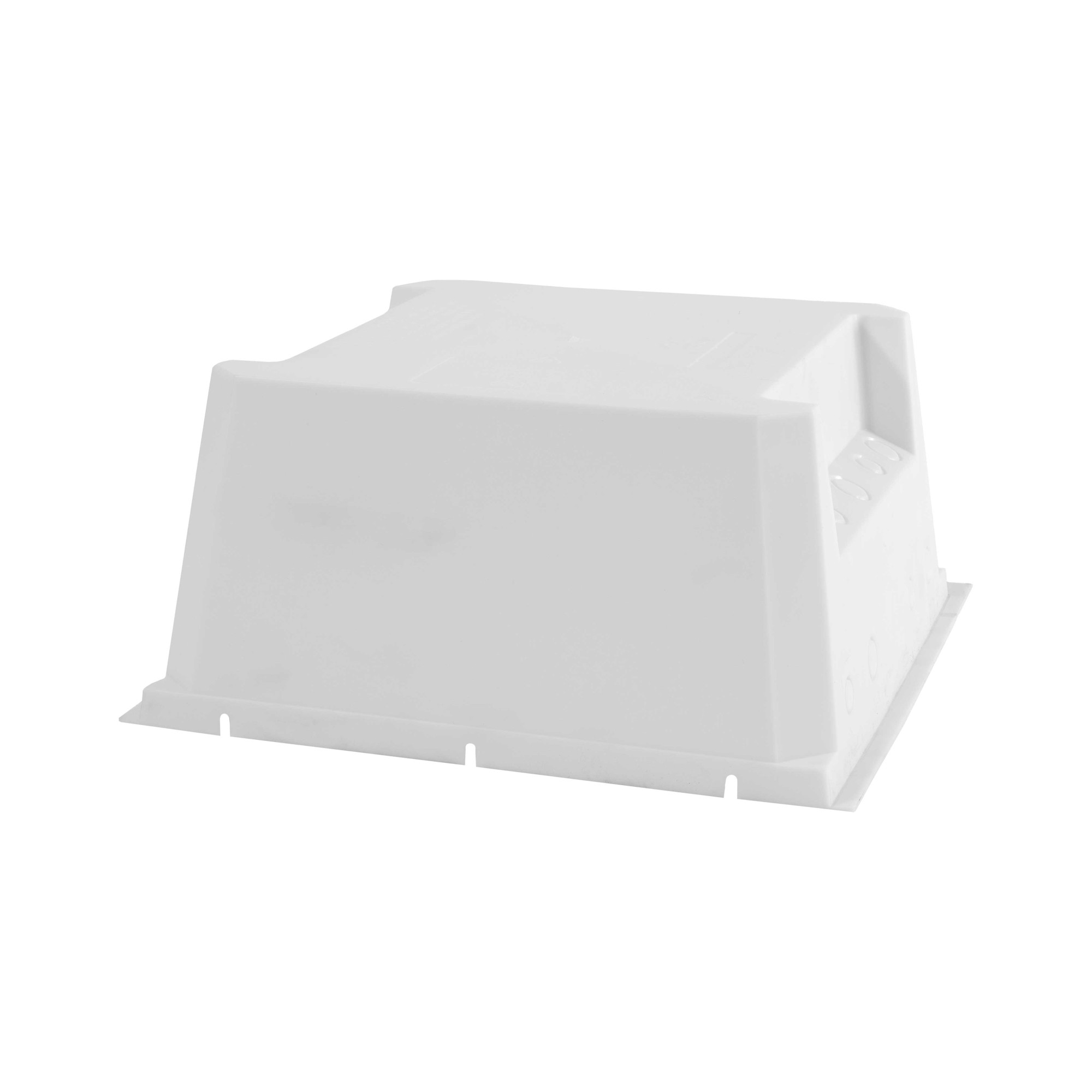

Maxi Downlight Protector
Maxi Downlight Protector
Mini Downlight Protector Mini 90 Downlight Protector Mini 90 Downlight Protector Inside and Outside View Maxi Downlight Protector Inside and Outside View Mini Downlight Protector Inside and Outside View An image of a product Optime Maxi Downlight Protector

Optime Airtight Downlight Protector

Choose from 3 options
  • Product Overview
  • Technical Details
  • Downloads
  • Installation guide

Product Overview

Main purpose

To prevent air leakage, condensation and heat loss when installing light fittings or speakers in an airtight building.

Use it on

Ceilings or walls in any building where the installation of downlights or speakers may affect the insulation performance and airtightness in both newbuilds and refurbishments (retrofit).

Overview

Optime Downlight Protectors ensure the airtightness and insulation of a building is not compromised by the installation of downlights. These easy-to-install flush mounted airtight boxes are easily sealed to an airtight membrane or airtightness layer. They prevent condensation and mould within the attic space by providing a continuous insulation layer with no gaps.

Where to use it

Suitable for use in any kind of ceiling (directly under the roof or attic space), or in walls where light fittings or built-in speakers would penetrate an airtight membrane.

The airtight downlight covers are available in 3 sizes. The largest (Maxi) size can fit a light fitting and transformer. The Mini and Mini 90 sizes are narrower and ideal for when space is limited.

What it does

Optime Downlight Protectors are box-shaped airtight housings made from non-flammable recyclable material. These downlight covers make it easier to perfect an airtight seal around electrical cables required for lighting.

How it works

The sides of the downlight box have blanked off holes that can be punched out for cables to pass through.

The Maxi box has five 16mm and four 20mm hole blanks on two sides (18 in total).

The Mini has four 16mm and two 20mm hole blanks on two sides (12 in total).

The Mini 90 has four 16mm and two 20mm hole blanks on two sides (12 in total).

Why we love it

Being box shaped, an Optime Downlight Protector allows up to 200mm of additional insulation to be applied directly on top of the downlight protectors. This ensures the construction is much safer whilst reducing the risk of heat loss, air leakage and condensation in an attic or roof space.

Optime Downlight Protectors have been tested for fire resistance to comply with stringent European Standards and have achieved the CE mark.

Features

  • Prevents uncomfortable draughts
  • Maximises insulation performance
  • Can be covered by insulation
  • Prevents dust and insects falling into the room
  • Reduces the risk of condensation in the attic
  • Fire resistant
  • Very simple to install using just airtight tape and grommets

Benefits

  • Solves the common problem of air leakage around downlights.
  • Eliminating air leaks allows insulation to perform at its best.
  • Insulation can be safely installed over the downlight ensuring continuity, thereby reducing heat loss and heating costs.
  • Improves comfort and indoor air quality.
  • Helps maintain a dry stable attic environment which reduces the risk of mould in the attic.
  • Fire resistant materials improve safety for building occupants.
  • No specialist installation skills required.

Questions

There are currently no questions and answers published for this product

Ask A Question

Technical Details

Key Technical Data

Technical Datasheet

  • Download

Installation Guide

How to Install

A suitably sized hole should be cut in the membrane or airtight layer before the Optime Downlight Protector is put in place. The lip of the downlight protector should overlap the membrane or airtight layer and be airtight sealed to it using airtight tape. The lip also has pre-drilled holes so it can be securely fixed to timbers in the ceiling or wall with screws when required.

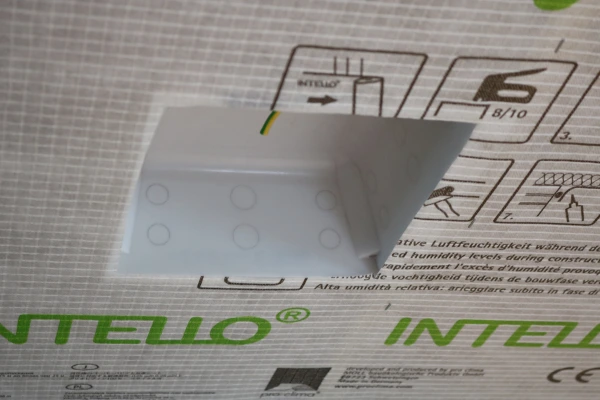

A Fitted Downlight Protector before airtight tape is fixed showing Intello membrane and a cable protruding through the housing.
Fitted Downlight Protector before airtight tape is fixed.

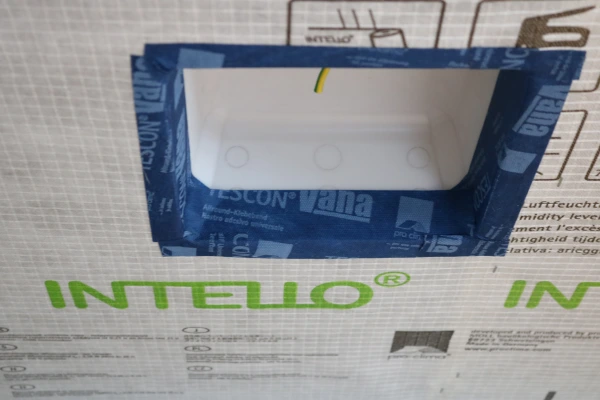

A Fitted Downlight Protector after airtight tape is fixed showing Intello membrane and a cable protruding through the housing.
Fitted Downlight Protector after airtight tape is fixed.

The cable holes are most easily sealed with Pro Clima Stoppa Grommets. These are tight fitting rubber plugs that go in to each hole to hold the cable securely and provide an airtight seal. The Stoppa should be pierced with a sharp point to allow the cable to be inserted. Stoppa’s also allow the cable to move or be pulled through if required.

If the holes on the side are not convenient, multiple holes or one large hole can be drilled or cut in the top or side and a suitable Kaflex grommet can be used to provide an easy and quick seal. Alternatively, the cables can be sealed to any of the 16 or 20mm holes with airtight tape or Orcon F airtight sealant. Using tape or sealant means the cables are fixed in position and can’t be adjusted, pulled or moved once installed.

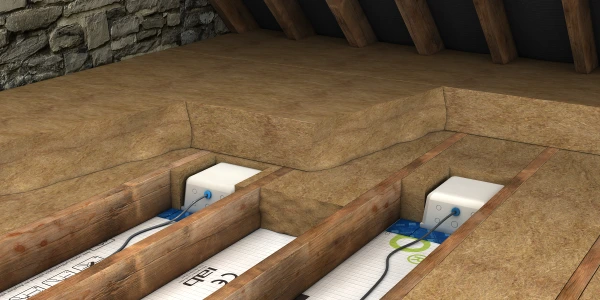

Optime Mini 90s as seen from above within an attic space.
Optime Mini 90s as seen from above within an attic space.

Hints & Tips

If non-LED bulbs are used, 50w is the maximum power rating allowed. We would only ever recommend using low wattage LED lightbulbs.

Optime downlight protectors can only be used in a wet room if the light fitting is specifically designed and IP rated for safe use in that location. Check with the light fitting’s manufacturer beforehand for clarification.
